Boat slip S
845,00 €
Boat Slip S is designed for small V-hull, flat-transom outboard motor boats with engine power typically 2-30 hp and a total weight under 275 kg.
In stock

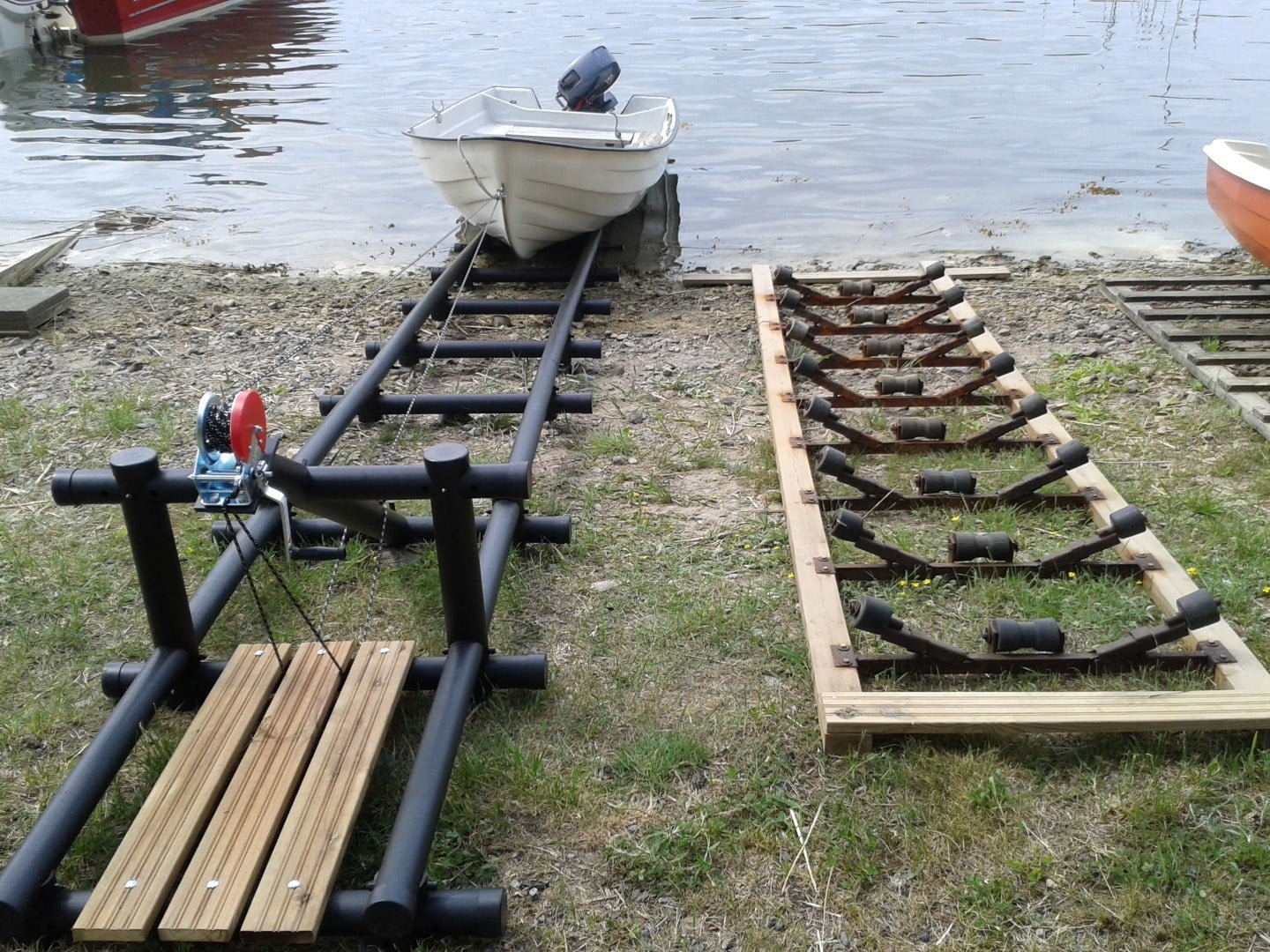

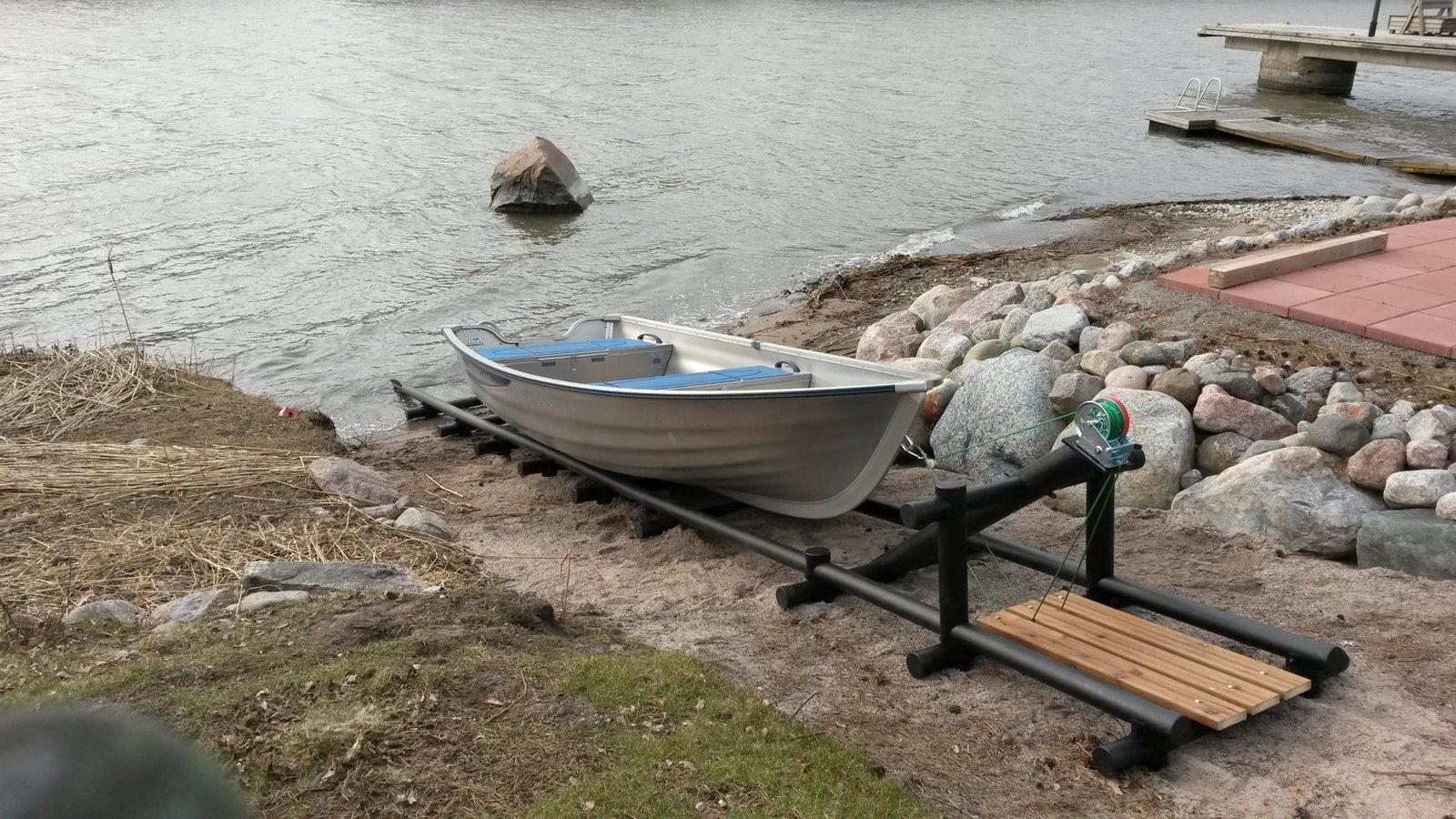

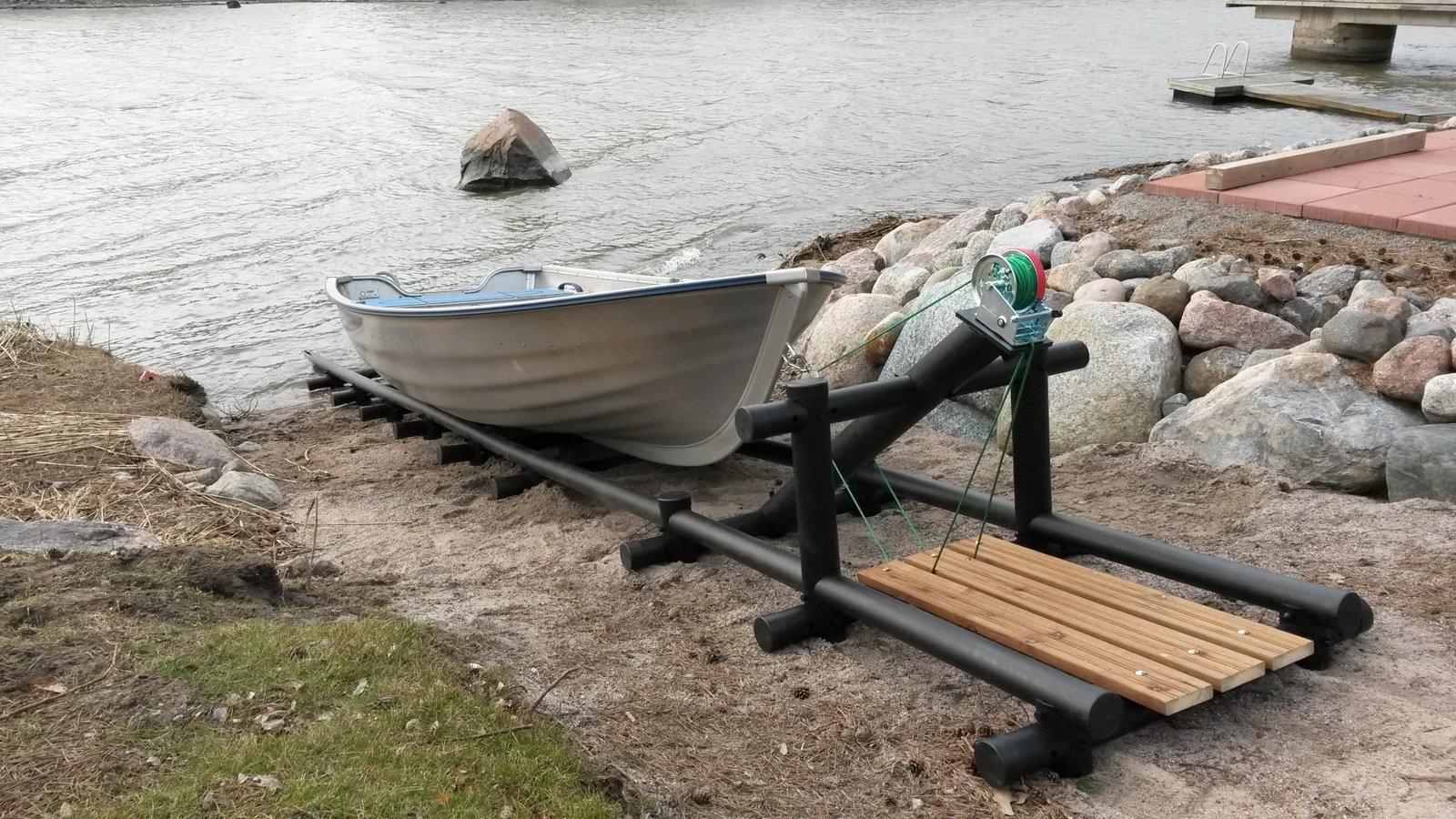

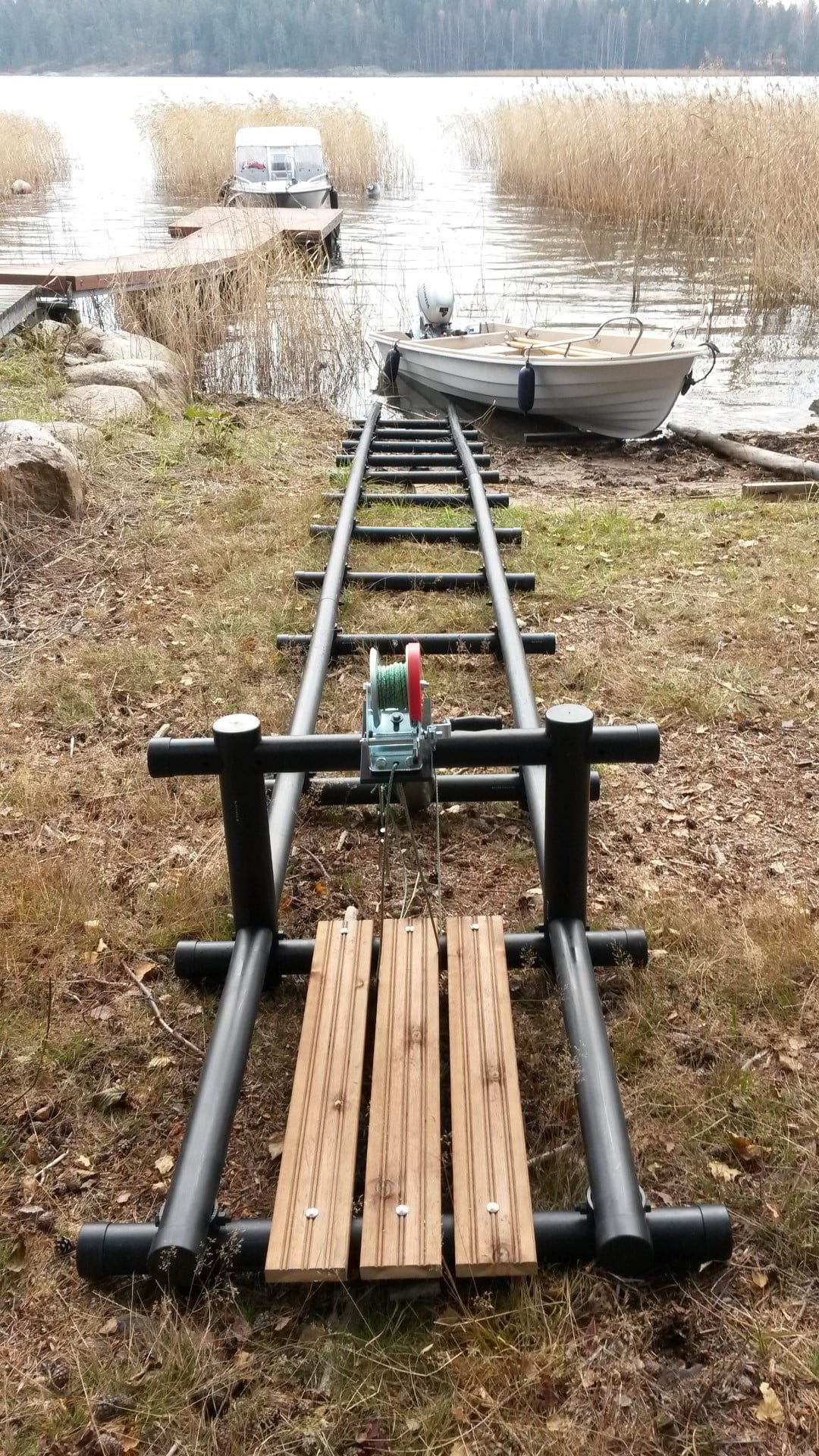

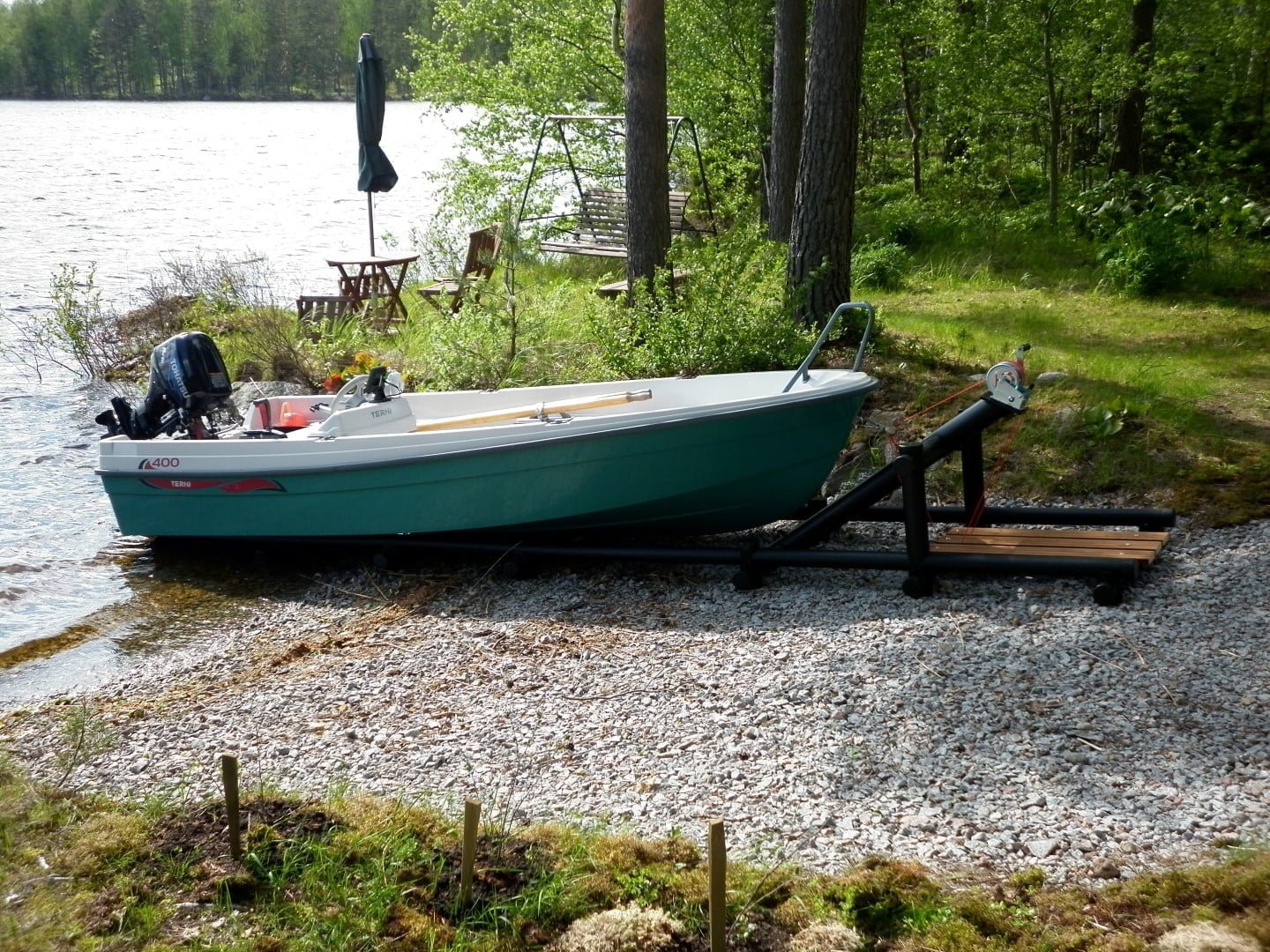

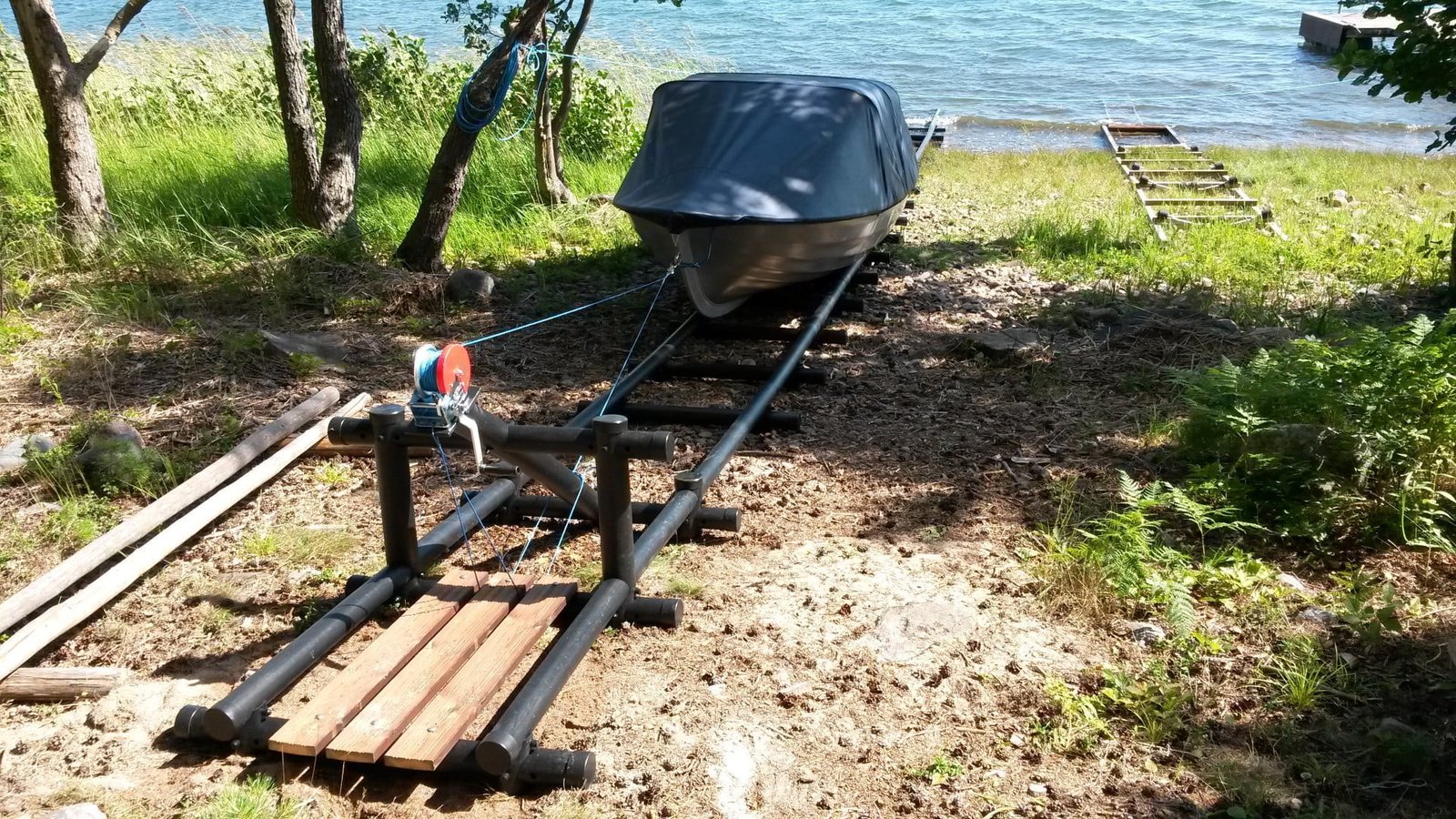

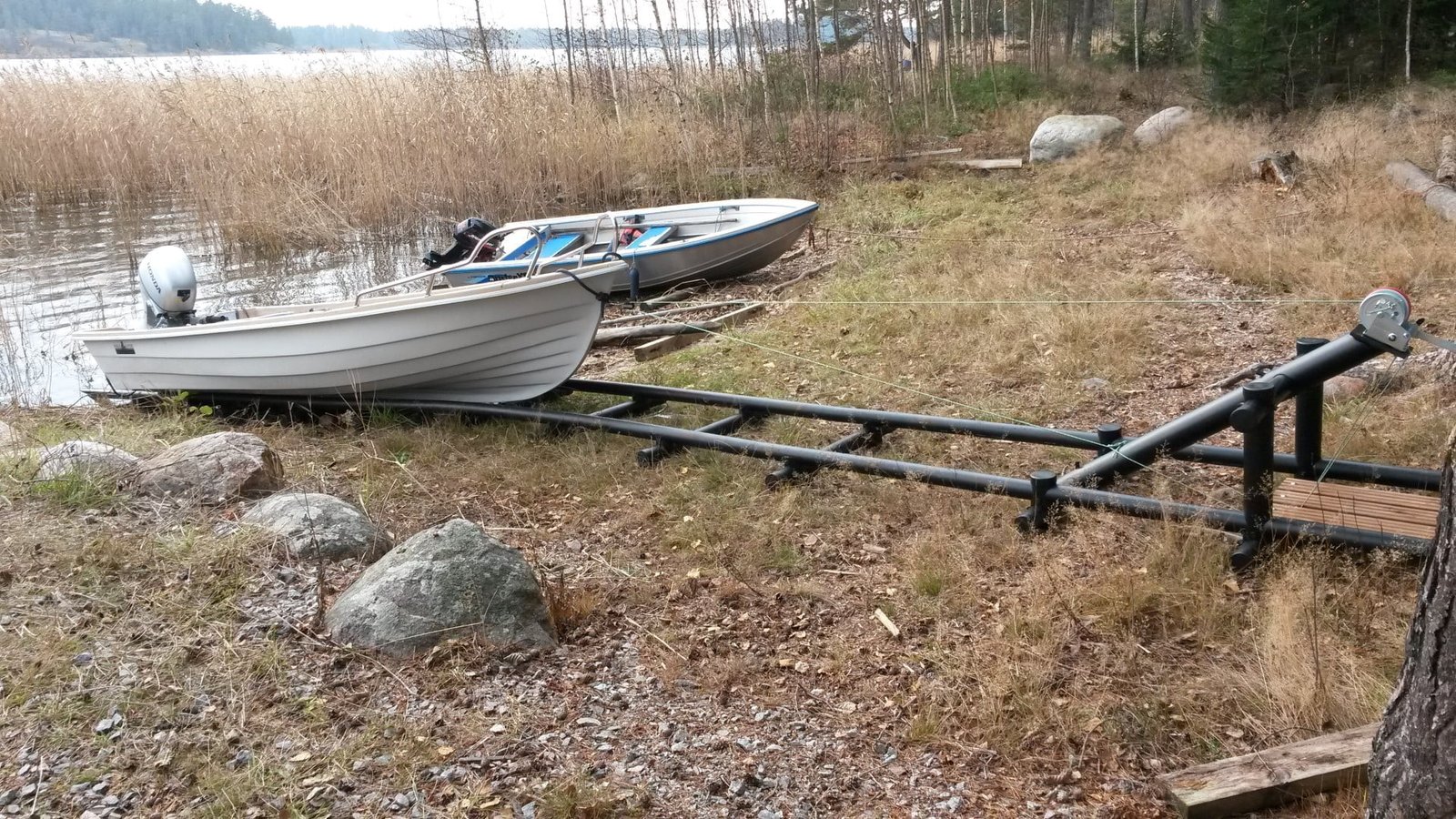

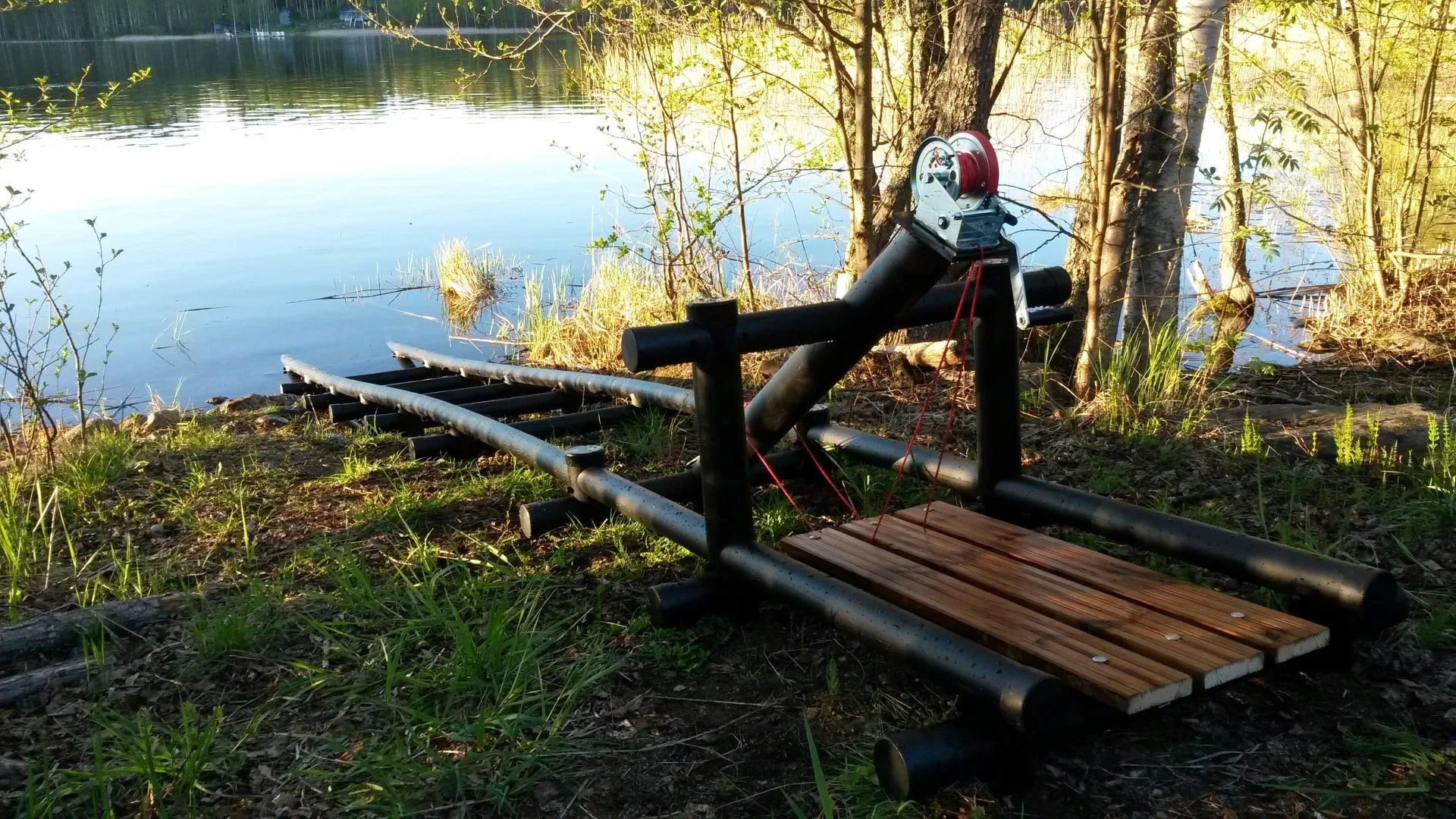

Boat Slip S
is the right choice for small outboard motor boats.
You can adjust the slip to match your boat’s V-angle, allowing the boat to glide smoothly on the slip.
DURABLE
Venos slip does not rust or rot, as it is made of durable HDPE plastic. Bolts and nuts are nylon. The slip also has no rollers that could jam or break.
Technical specifications:
Technical specifications
Length: | 6.90 m |
Width: | 1.00 m (max) |
Weight: | 46 kg |
Material / slip: | Polyethylene (HDPE) |
Material / bolts and nuts: | Nylon (PA) |
Color: | Black |
Maximum permitted boat weight: | 275 kg |
Usable working space: | approx. 6.2 m |
V-angle adjustment: | 11-15 degrees |
Additional information:
Shipping package dimensions: | 2 packages 30 x 35 x 240cm / 23kg Winch section 35 x 35 x 225cm/ 23kg Parts B and C |
Package contents: | Slip modular structure, winch, pull rope, bollard, attachment hook, assembly instructions and operating maintenance instructions |
Delivery: | As two packages/parcels to postal address. The slip is delivered in parts and the customer assembles the slip themselves. |

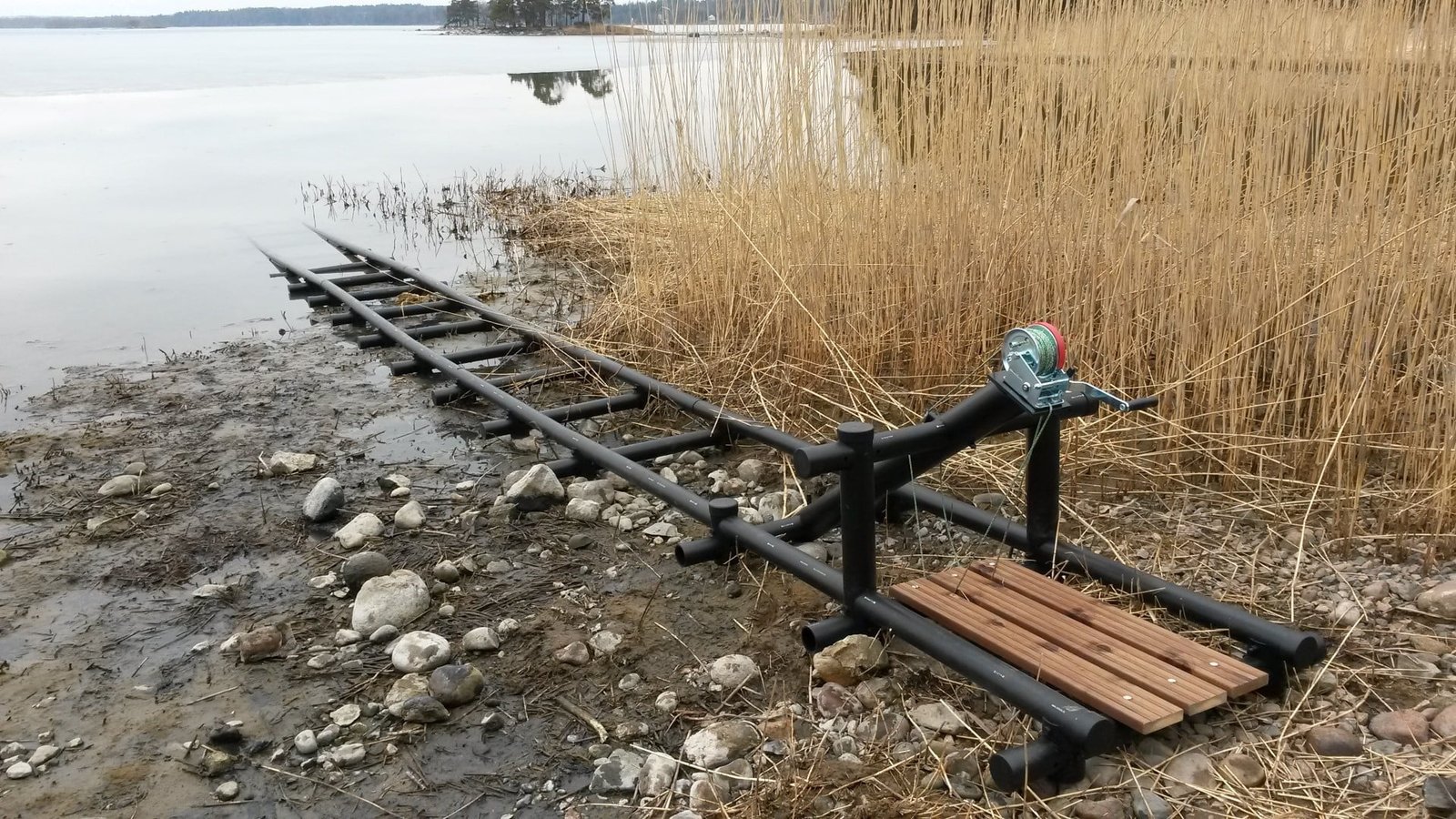

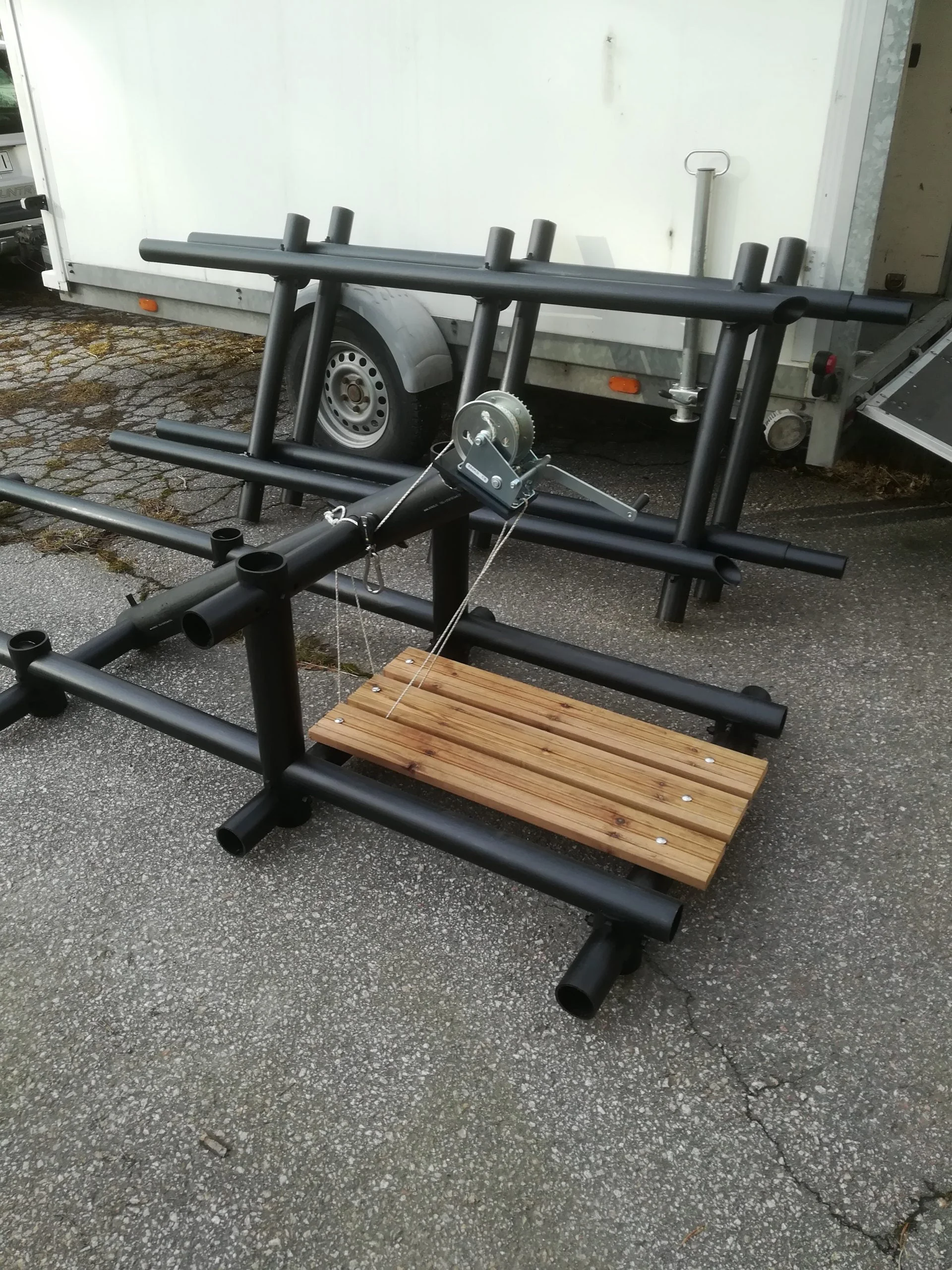

Slip structure: | When assembled, the slip consists of two 2.25 m sections and one 2.40m winch section. The sections are easy to detach from each other, allowing the slip to be moved effortlessly as needed. |
Examples of boats suitable for S-slip:
Buster mini
Buster XS
Terhi 400
Terhi 440
Suvi Kala-Kaveri 475
SuviKala-Palta
Linder 400
Linder 440
Linder sportsman 355
Linder sportman 400
Yamarin 405
Yamarin 410
How to find the right boat slip for your boat:
- Determine the boat’s weight and add the weight of the engine, battery and fuel.
- Determine the boat’s V-angle.
Here are a couple of examples:
Buster Mini Sport
Example 1- Boat weight: 119kg
- engine 9.9hp: approx.43kg
- battery approx.20kg
- fuel tank approx.20kg
- boat's other equipment approx.10kg
Suvi Kala-Palta
Example 2- Boat weight: 153kg
- engine 15hp: approx.55kg
- battery approx.20kg
- fuel tank approx.20kg
- boat's other equipment approx.10kg
Buster S
Example 3- Boat weight: 188kg
- engine 20hp: approx.60kg
- battery approx.20kg
- fuel tank approx.20kg
- boat's other equipment approx.10kg
Although the total boat weight exceeds by nearly 50kg, boat slip- S slip withstands and works well under this boat. On steep shores we recommend securing the boat to shore and releasing the tension from the winch.
If the boat is lightweight and has a large V-angle (over 15 degrees), such as some inflatable boats (RIB=Rigid inflatable boat), contact Venos. A modification kit is available for the S-slip that allows the S-slip V-angle adjustment to be increased.
| Weight | 129,87 kg |
|---|---|
| Veneen enimmäispaino (kg) | 275 |
| Veneen enimmäispituus (m) | 6,50 |
| Telakan pituus (m) | 6,90 |
| Telakan leveys (m) | 1,00 |
| Telakan paino (kg) | 46 |
| Väri: | Black |
| Materiaali | HDPE Plastic |
