Boat Slip M
1195,00 €
Boat slip M is designed for medium-sized V-hull outboard motorboats with a total weight of less than 500 kilograms.
In stock
Technical Specifications:
Technical Specifications
Length: | 8.70 m |
Width: | 1.00 m (max) |
Weight: | 77 kg |
Material / Dock: | Polyethylene (HDPE) |
Material / Bolts and Nuts: | Nylon (PA) |
Color: | Black |
Maximum Permissible Boat Weight: | 550 kg |
Usable Length: | approx. 7.8 m |
Additional Information:
Shipping Package Dimensions: | total of 4 packages. Part A 30 x 35 x 240 cm / 30kg winch part Part B 20 x 25 x 210cm / 15kg Part C 20 x 25 x 210cm / 17kg Part D 20 x 25 x 210cm / 15kg |
Package Contents: | Parts of the dock structure, winch, winch rope, pulley, mooring hook, assembly instructions, and operating and maintenance instructions |
Delivery: | As a single shipment to the postal address. The dock is delivered in parts, and the customer assembles it themselves. |
Dock Configuration: | When assembled, the dock consists of three 2.10 m sections and one 2.40 m winch section. The sections are easy to connect and disconnect, allowing the dock to be effortlessly moved as needed. |

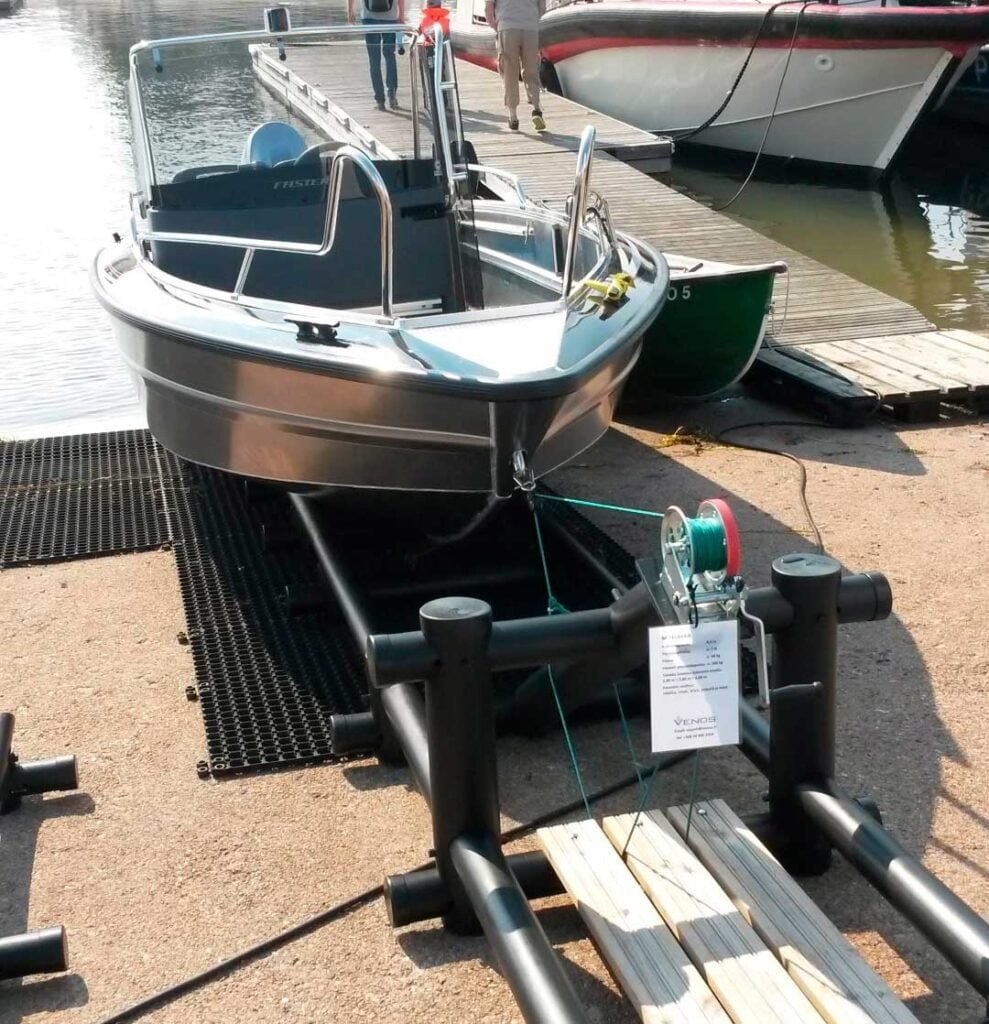

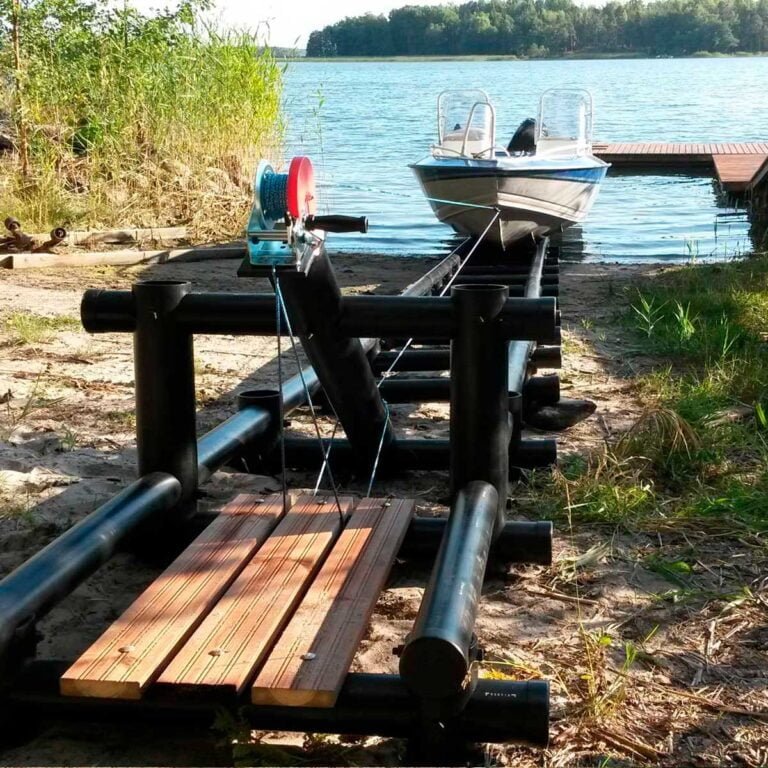

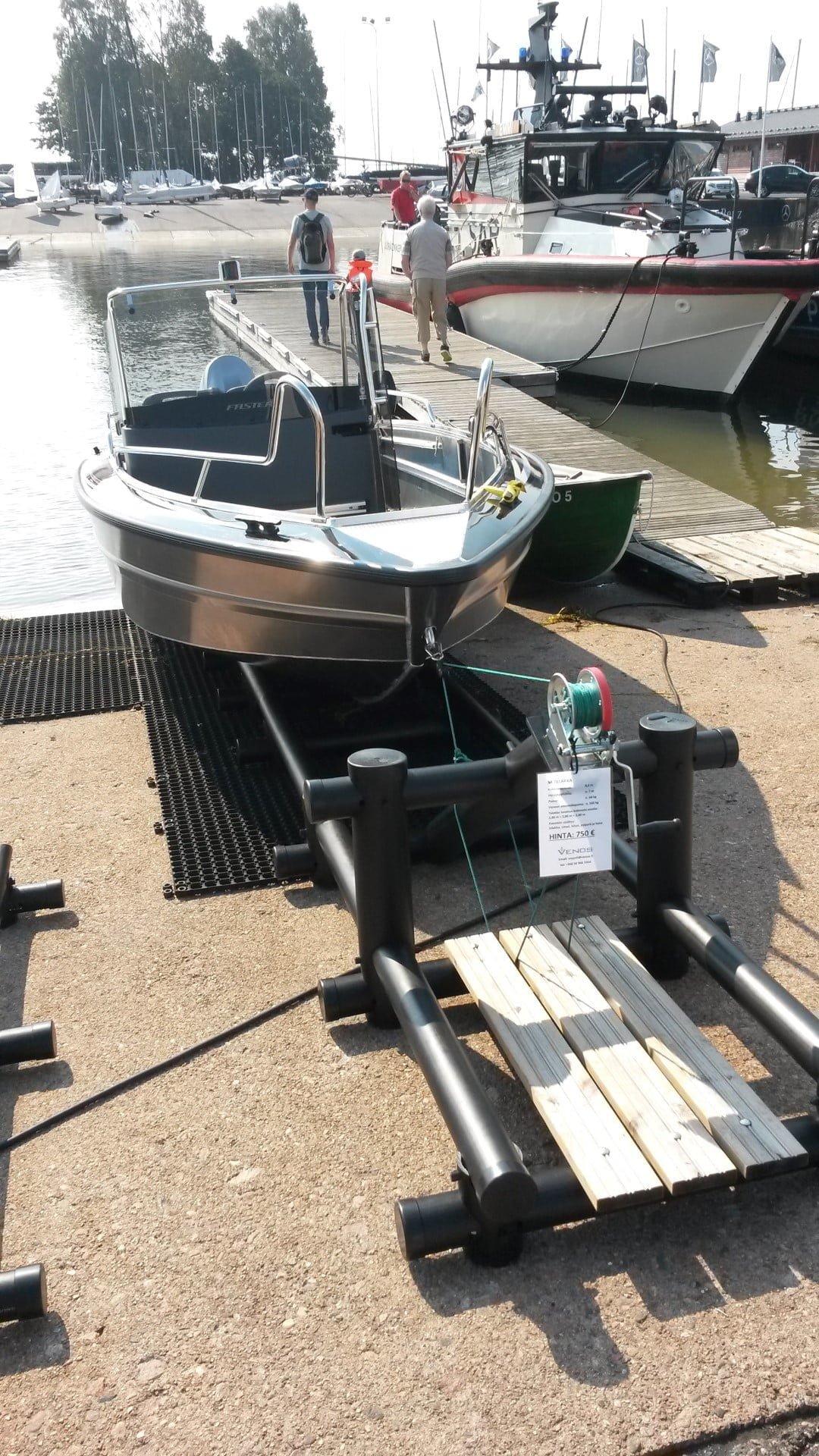

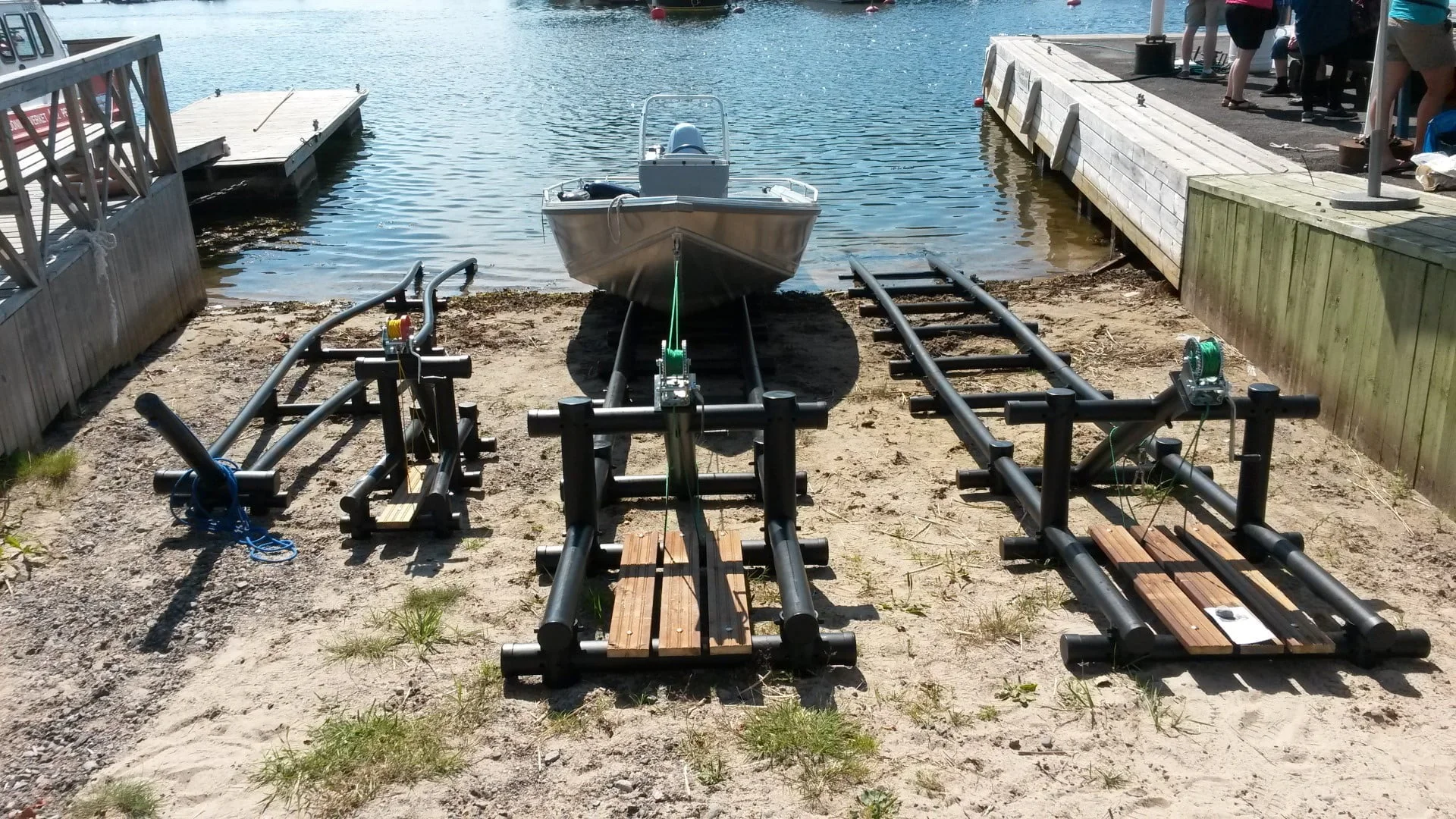

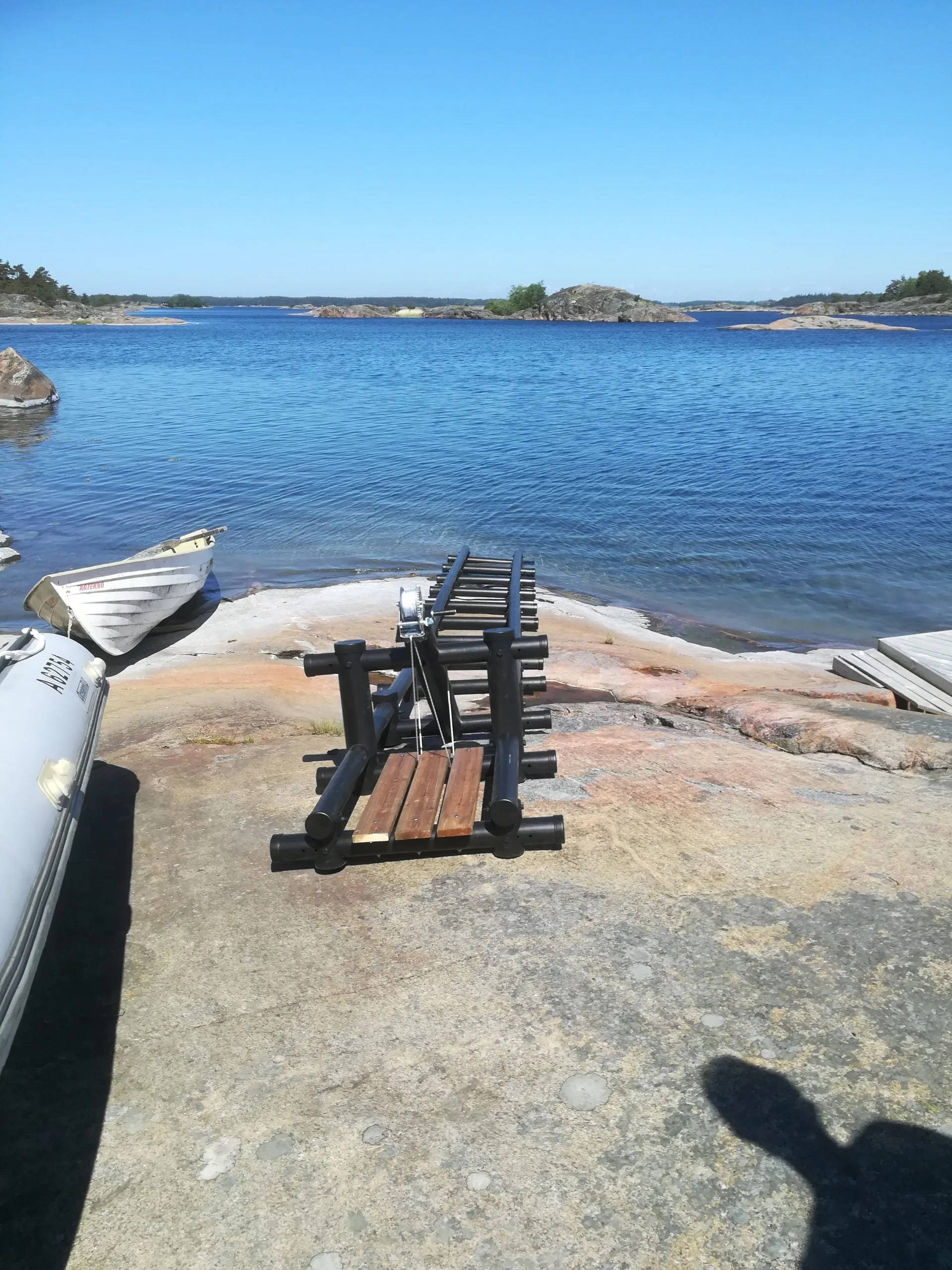

Boat Slip M – Sliding Dock for Medium-Sized Outboard Motorboats!
You can adjust the dock according to your boat’s V-angle, ensuring the boat rests securely on the dock while sliding easily.
DURABLE
The Venos dock does not rust or rot, as it is made of durable HDPE plastic. The bolts and nuts are nylon. The dock also has no rollers that could get stuck or break.
Lightweight

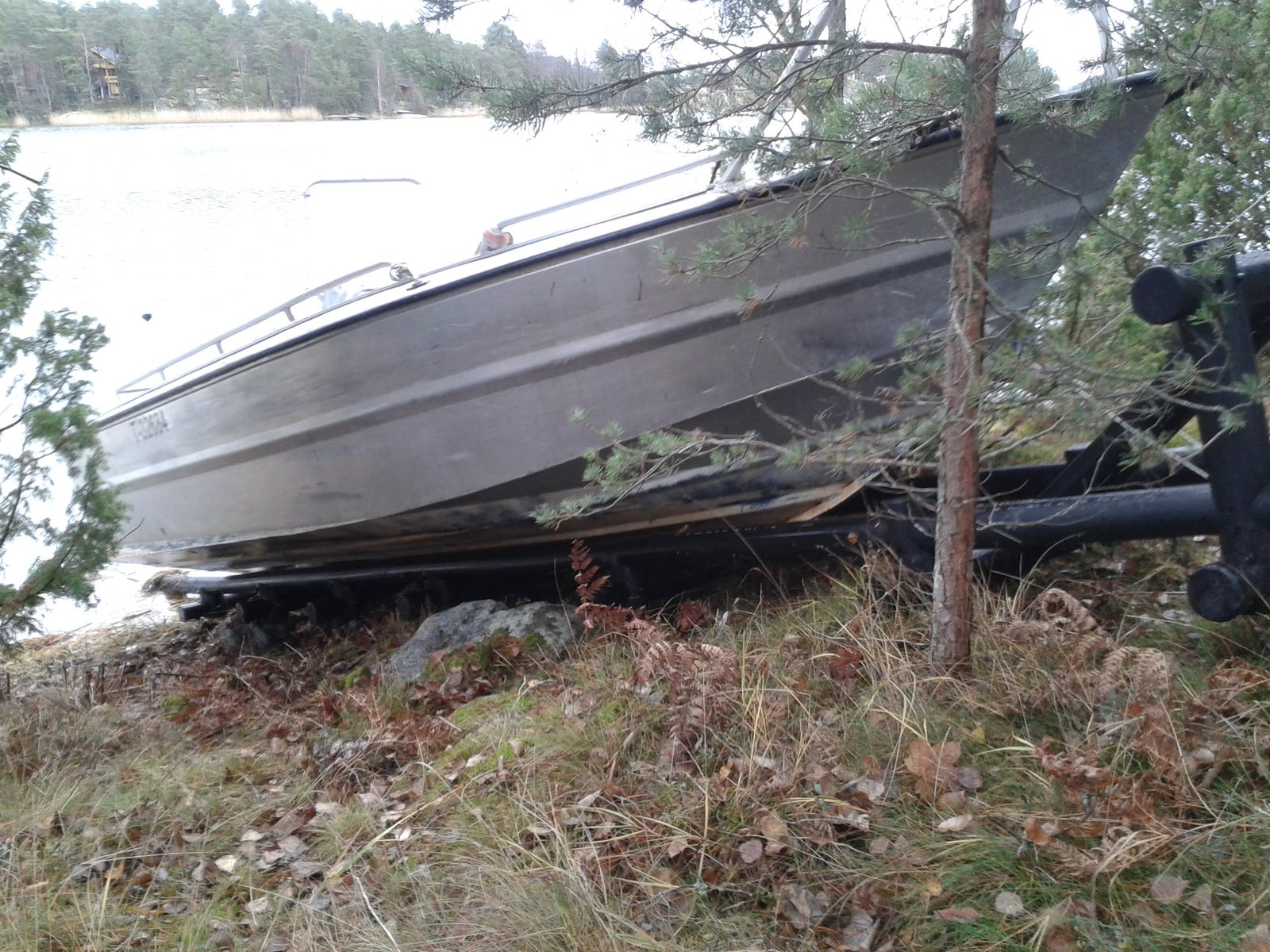

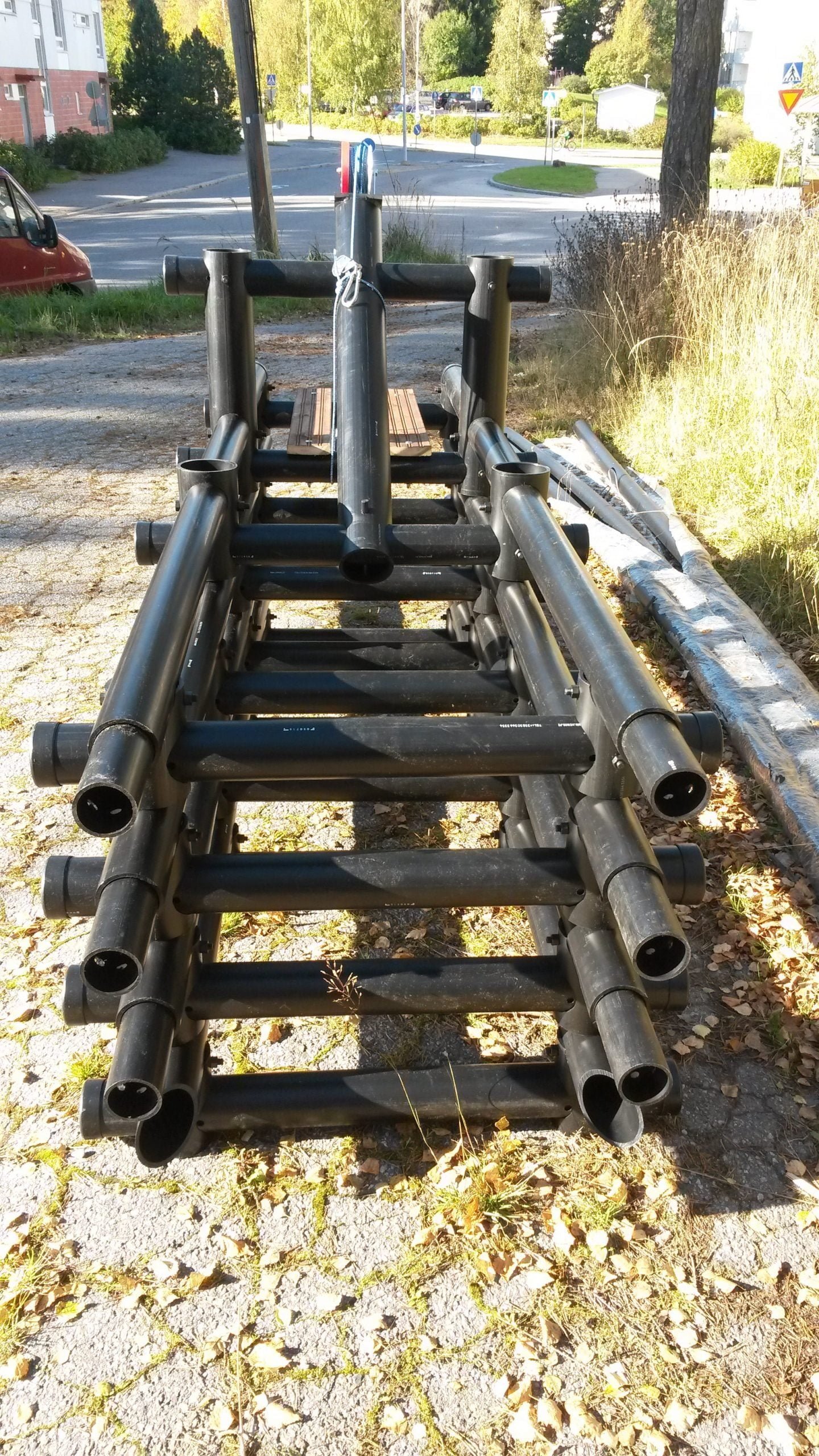

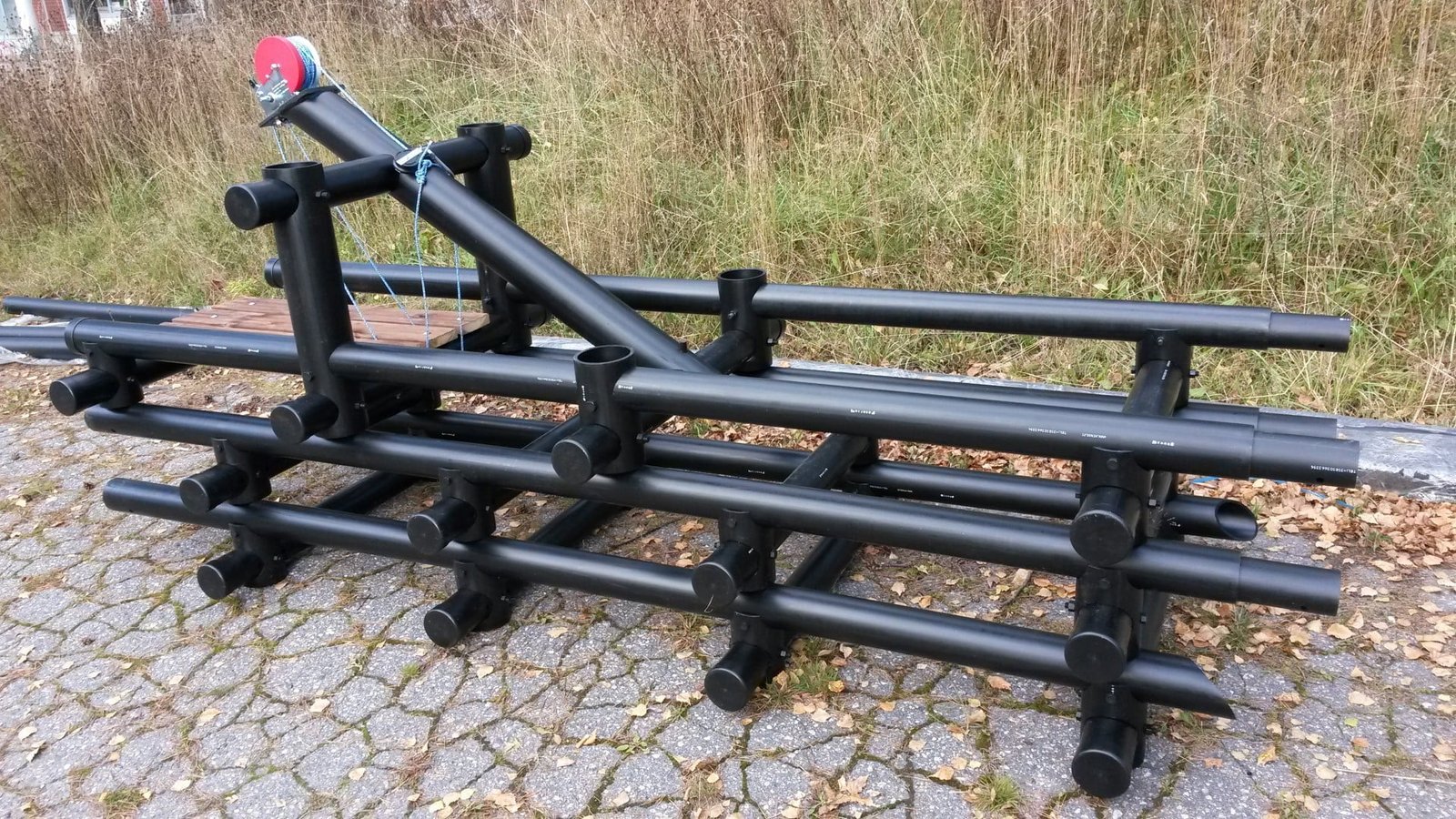

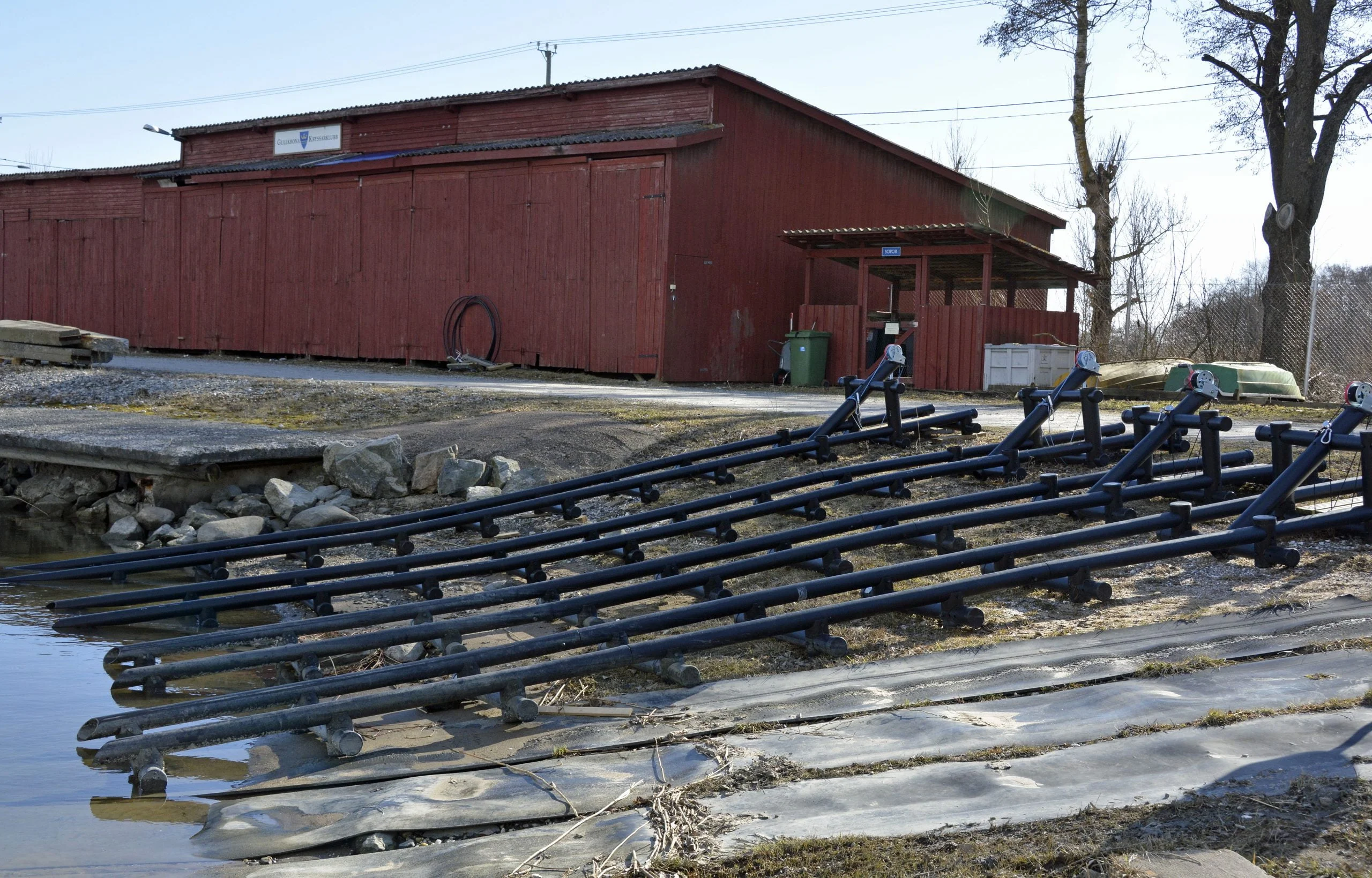

Thanks to its material and modular structure, the dock is lightweight to install and move. You can also store your boat on the dock over the winter, as you can easily remove only the parts that go into the water.
Easy to Use

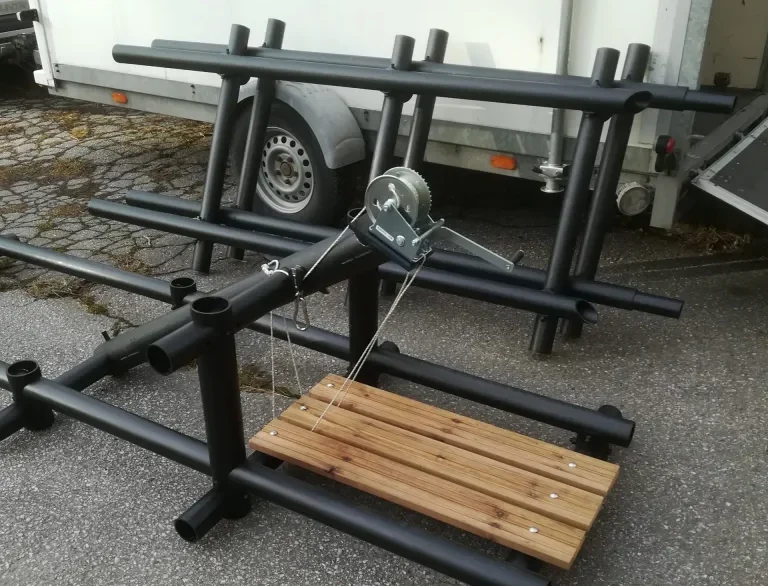

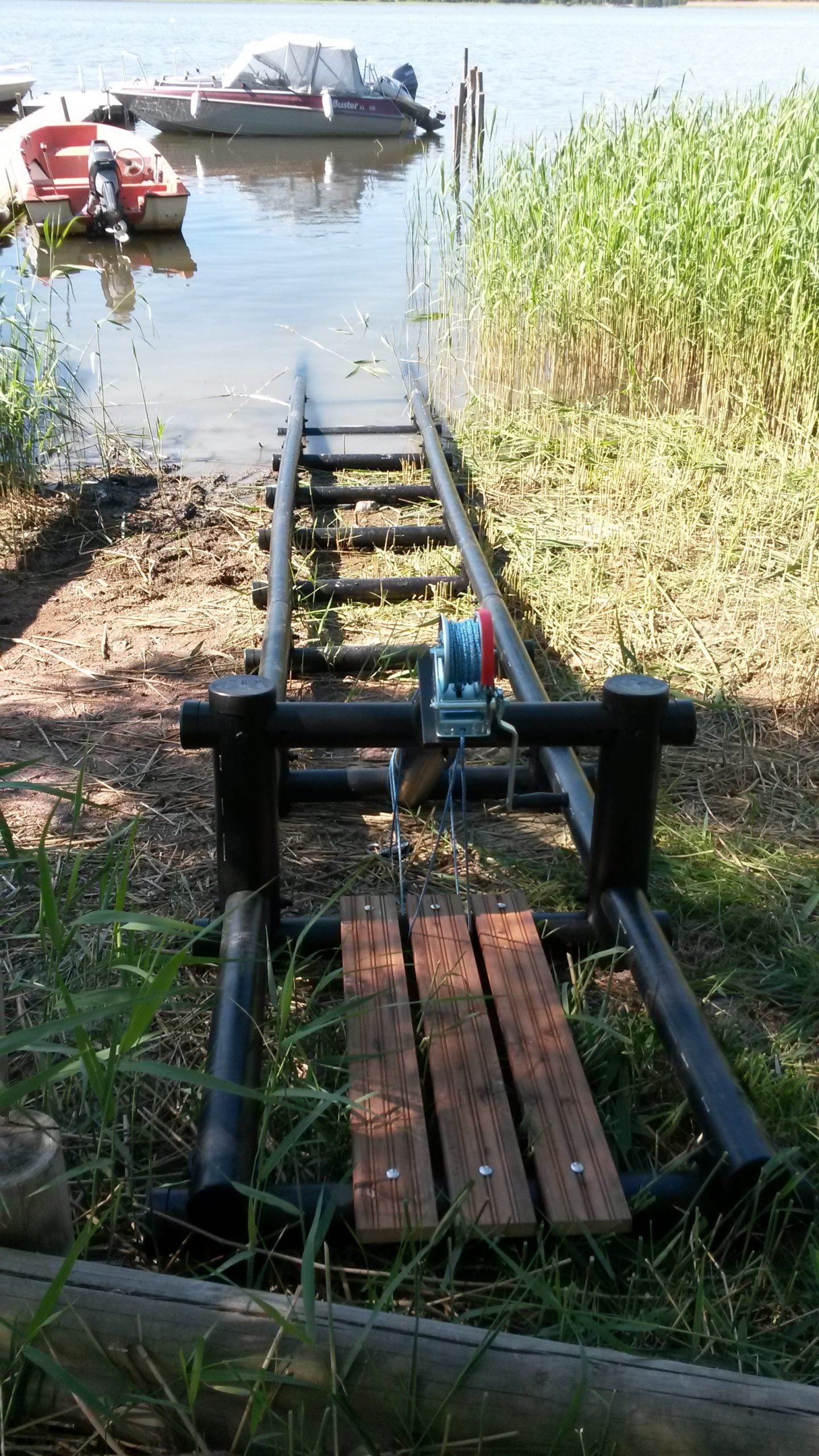

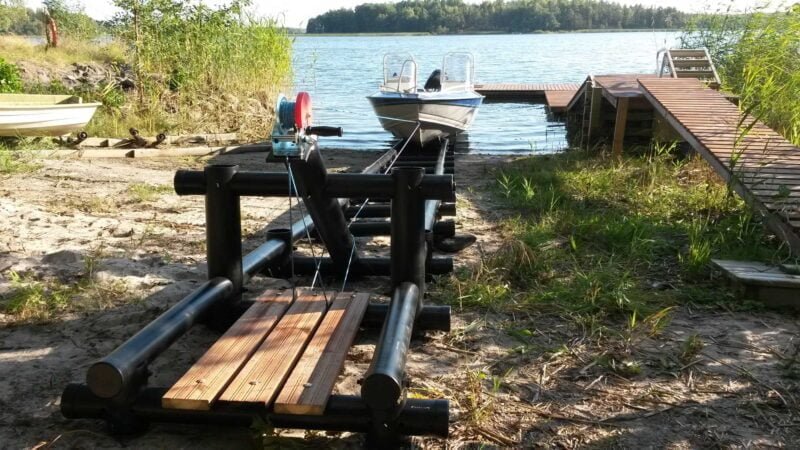

The dock’s winch structure makes lifting the boat easy. Thanks to the material’s excellent sliding capability, launching the boat is effortless and fast.
Long-lasting
All parts of the dock are easily replaceable, as individual parts can also be purchased. If necessary, you can easily extend the length of the dock with extension pieces.
Environmentally Friendly
By storing your boat on the dock, you can avoid dealing with toxic paints, saving time, effort, money, and most importantly, protecting nature.

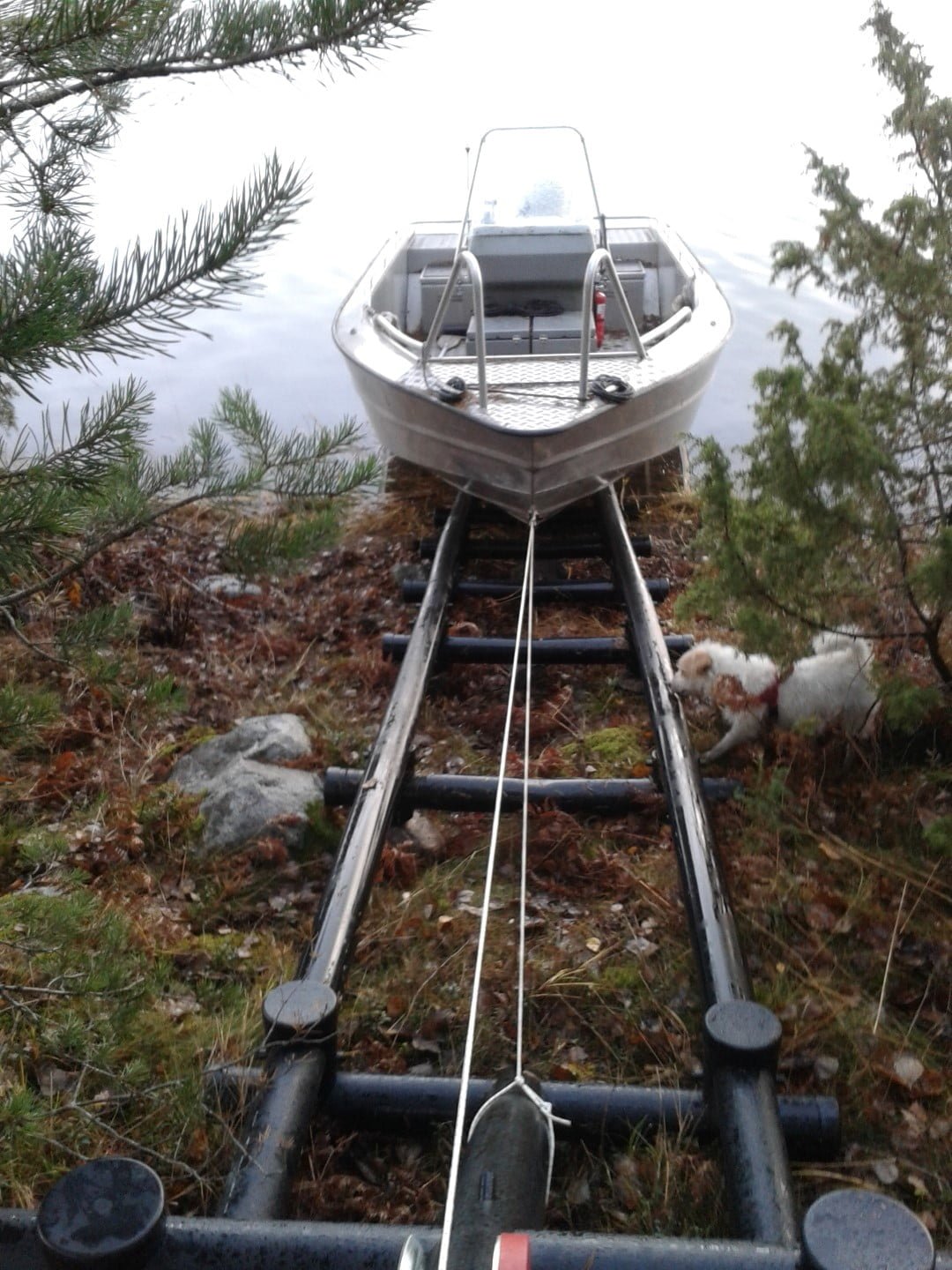

The Venos dock makes it easier to pull the boat up and launch it. The dock allows for carefree boat storage, protecting the boat’s bottom from unnecessary bumps and scratches, and saving the user from toxic antifouling paint and bottom cleaning in marine areas.
Refined Details
With the Venos dock, you can adjust the width precisely according to your boat’s V-angle, ensuring the boat’s weight is distributed correctly and evenly on the dock.
This way, the boat rests securely on the dock without chafing and slides easily off.
Examples of Boat Models Suitable for the Dock:
Faster 460
Faster 495
Särki 430
Silver Baever
Buster S
Buster M
Buster L
Terhi 450 CC
Terhi 480 BR
Terhi 480 Sport
Terhi Nordic 6020 C
Terhi Nordic 6020
Suvi 4250
Suvi 45 Duo
Suvi 46
Suvi 47 Duo
Suvi 50 Duo
Which Dock is Suitable for My Boat?
- Determine the boat’s weight and add the weight of the engine, battery, and fuel.
- Determine the boat’s V-angle.
Suvi 45 Duo
Example 1- Boat weight: 280kg
- engine 30hp: approx. 100kg
- battery approx. 20kg
- fuel tank approx. 20kg
- other boat equipment approx. 10kg
Faster 460
Example 2- Boat weight: 330kg
- engine 50hp: 125kg
- battery approx. 20kg
- fuel tank approx. 20kg
- other boat equipment approx. 10kg
Buster L
Example 3- Boat weight: 390kg
- engine 50hp: approx. 120kg
- battery approx. 20kg
- fuel tank approx. 20kg
- other boat equipment approx. 10kg
If you have a lightweight boat with a large V-angle (over 20 degrees), such as some inflatable boats (RIB=Rigid Inflatable Boat), please contact Venos. A modification kit is available for the M-dock to increase its V-angle adjustment.
Do You Need an Extension Piece?
Boat slip M
Boat slip M is designed for medium-sized V-hull outboard motorboats, typically with engine powers of 20-60 hp and a total weight of less than 550 kilograms.
The dock makes it easier to pull the boat ashore and launch it. It allows for carefree boat storage, protecting the boat’s bottom from unnecessary bumps and scratches, and in marine areas, also saving the user from toxic antifouling paint and bottom cleaning.

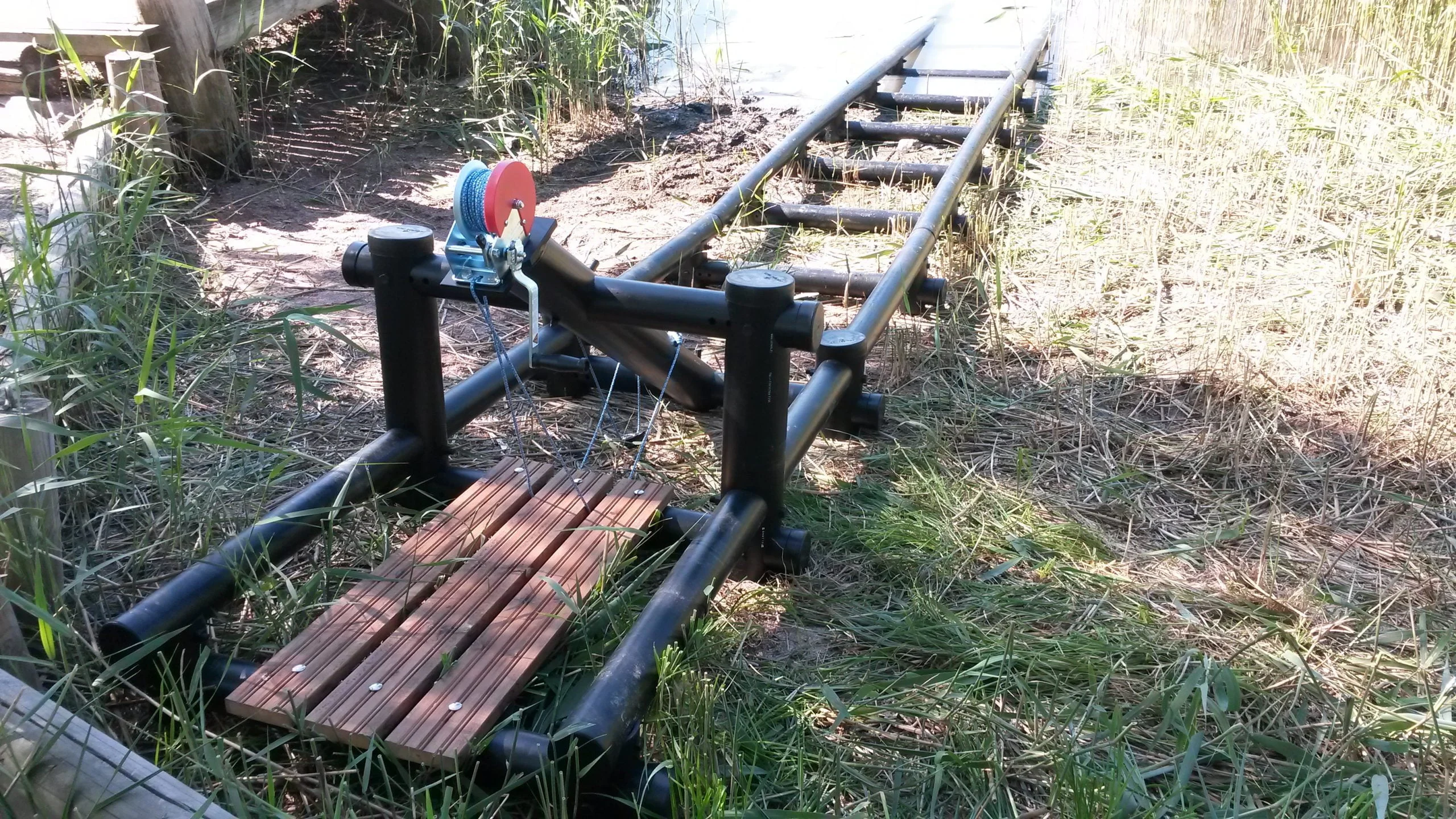

The total length of Boat slip M is 8.70 m, consisting of three 2.10 m sections and a 2.4 m winch section. The dock’s usable length is approx. 7.8 meters, and its total width is 1 meter. The dock can be extended with 2.10 meter extension sections.
The dock is adjustable to suit different boat models according to the V-angle of the boat’s hull. (16-20 degrees)
Length: approx. 8.70 m
Width: 100 cm
Weight: Winch part A 30kg and parts B, C and D +15+17+15kg. Extension piece 15 kg
Material: HDPE plastic
Color: black
Keywords: Boat slip, Plastic Boat Dock, Boat Cradle, Boat Stand, Båtslip, Small Boat Dock, Boat Lift, Shore Dock
| Weight | 191,14 kg |
|---|
